Fiber-Optic Devices, Across the Entire Optical Link

Four product lines — OCS, MEMS switches & circulators; high-density connectivity; coherent & optical amplifier components; and active access modules. Every model has a datasheet with complete specifications, and custom options are available on request.

Series 1 · OCS & MEMS

OCS, MEMS Switches & Circulators

Optical switching and routing devices built on our MEMS and free-space optical platforms — from large-port OCS chassis to miniaturized circulator arrays.

512 × 512 OCS

OCS — Optical Circuit Switch

The switch sets up non-blocking all-optical paths between any two ports, transparent to bit rate and wavelength. It serves AI data center spine layers, DCI and automated optical network management.

64×64 – 512×512 · Typ. IL 1.5–2.0 dB · 10⁹ cycles · NETCONF / REST API
View details →
1×N / M×N single mode MEMS optical switch

MEMS Optical Switches

Software controls the optical path, eliminating manual re-patching. Single-mode and polarization-maintaining versions run from 1×N up to N×N matrices for automated testing, link protection and OTDR monitoring.

1×N / M×N / P2P Matrix · N = 1–128 · SM / PM · 16/32/48/64 ch
View details →
8:9 protection optical switch

Protection & Specialty Switches

Fast line-side path protection and low-cost channel selection — keeps traffic alive when a span fails, without touching the transceivers.

8:9 protection / magneto-optical / mechanical · 1260–1360 nm (O-band) · 1×1 / 1×2 / 1×4 / 2×2
View details →
8-in-1 arrayed circulator

Optical Circulators

Separates forward and backward light so one fiber carries both directions — the arrayed 8-in-1 package halves the port count an OCS has to switch.

8-in-1: IL ≤ 1.0 dB · ISO ≥ 40 dB · 82×45×11.5 mm
View details →
Circulator rack

Circulator Rack

Standalone circulator chassis paired with OCS — single-fiber bidirectional operation that doubles the effective port count of the OCS.

4–48 channels · 32/64/128-ch expansion · 1U
View details →
Series 2 · Coherent & Amplifier

Coherent & Optical Amplifier Components

Miniaturized hybrid devices and high-power components for coherent optical modules, EDFA integration and fiber-laser systems.

EDFA — Amplifier Components
ITPD monitoring hybrid

PD Related

Tap PDs support closed-loop gain and output-power control in amplifiers by sampling the signal or monitoring it directly with a photodiode. ITPD variants add an isolator in the same package.

ITPD / TAPD / Mini Pigtail PD · hermetically sealed PD · Φ down to 1.4 mm
View details →
WIGW hybrid

WDM & IGFF Related

A single device can combine signal and pump light, provide isolation and flatten gain as needed. This reduces the number of discrete parts and saves up to three splice points.

IWDM / 2-in-1 / Folded IWDM / IGFF / WIGW · Φ down to 1.8 mm
View details →
2×2 in-line isolator

Isolator Related

An isolator blocks back-reflection and backward ASE between amplifier stages, keeping pump lasers stable. The range runs from 1×1 and 2×2 parts to 4-in-1 arrays and Mini formats, with up to four isolators in one package. They are polarization-insensitive and rated for high power.

1×1 / 2×2 / 4-in-1 / Mini / Mini Folded · Φ down to 2.2 mm
View details →
MEMS VOA

VOA, TOF & Others

VOAs handle per-channel power trimming and gain-tilt correction in DWDM links, and the TOF suppresses ASE noise through tunable filtering. PMTC, PBS and PM circulators cover the polarization-sensitive side of coherent optics.

MEMS VOA / Tilt VOA / TOF / PMTC / PBS · 0–40 dB attenuation, continuously adjustable
View details →
Ultra mini ITPD for mini EDFA

Mini EDFA Related

These ultra-mini parts — WDM, isolator, tap PD, GFF, VOA and PMTC — fit inside the compact EDFAs used in coherent 400G ZR/ZR+ pluggable modules.

IWDM / IGFF / WIGW / ITPD / TOF / VOA / PMTC · Φ down to 1.4 mm
View details →
Fiber Lasers
1064nm

1064nm

This line covers the whole 1064 nm chain: back-reflection protection from the 300 mW seed stage up to 500 W output, plus beam delivery, pump coupling and delay control.

1064 nm · 300 mW – 500 W · 15 models
View wavelength →
1550nm

1550nm

Protects eye-safe 1550 nm sources and amplifier stages against back-reflection, in mini packages that fit a crowded optical bench.

1550 nm · 10 W / 50 W in-line
View wavelength →
1940 & 1950nm

1940 & 1950nm

Isolators protect 2 µm thulium sources in medical and sensing systems. In-line versions take up to 60 W; fiber-to-free-space versions with collimated output take up to 100 W.

1940 / 1950 nm · 20 – 100 W
View wavelength →
Free-space Optical Communication & Wind LiDAR
Polarization maintaining circulator

PM Circulators & PM MEMS Optical Switch

Polarization-maintaining routing and switching for coherent terminals where transmit and receive share one aperture — crosstalk up to 65 dB, 10⁹-cycle switching.

PM 25/300 · O / C / L bands · 1×N PM MEMS
View details →
Sensing & Vehicle LiDAR
WITP hybrid

IWDM & WITP Hybrids

IWDM handles pump combining and isolation, while WITP adds tap monitoring — hybrid integration that shrinks the optical bench of vehicle-LiDAR and sensing transceivers.

IWDM / WITP · 940 pump · 1550 / 1590 nm signal
View details →
Series 3 · High-Density

High-Density Connectivity

Fiber management and interconnect hardware for high-density cabling, CPO architectures and multi-core fiber systems.

Fiber shuffle flexible board

Fiber Shuffle

A pre-mapped flexible board re-routes high-count fiber links between line cards, so no on-site patching is needed.

Fiber shuffle flexible board
View details →
Small pitch FAU

FAU & Collimator Arrays

Couples fiber arrays to silicon-photonics and MEMS chip waveguides at micrometer-scale pitch, and holds that alignment over temperature and vibration.

Small Pitch / PM FAU · Lidless · Collimator Array / 2D
View details →
MCF fan-out assembly

MCF Components

Breaks a multi-core fiber out into standard single-mode paths, so MCF spans can terminate on ordinary transceivers and patch panels.

FIFO fan-in / fan-out · MCF patch cord · MPO-2MCF LC
View details →

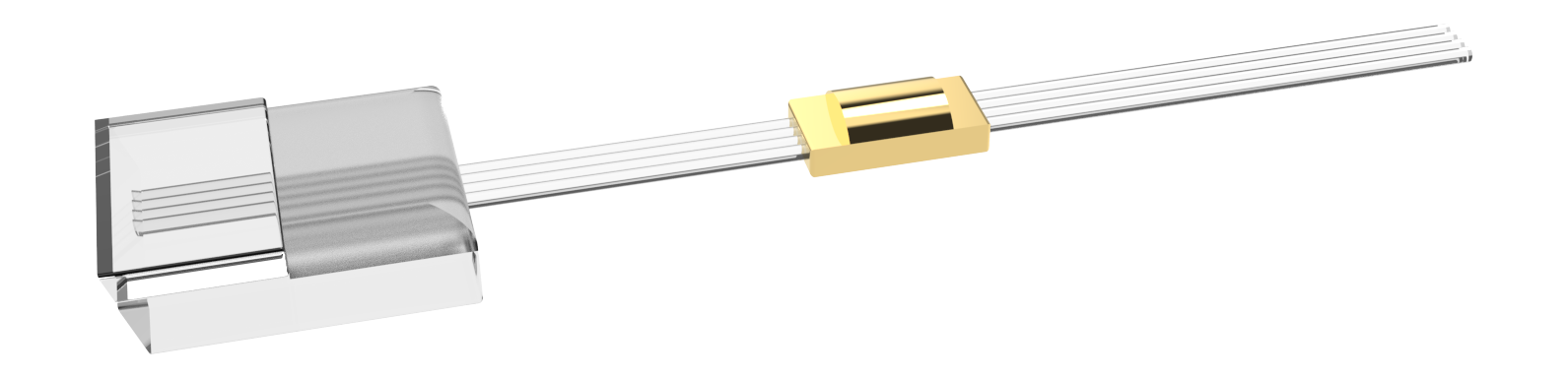

Fiber ribbon with irregular feedthrough

MPO / MT Connectivity

Parallel interconnect for CPO and high-density cabling — built from the MT ferrule up, so the same assembly can be tuned for loss or for density.

SM / PM MPO · MT-MT · MT-FA · FAU + feedthrough
View details →
Series 4 · Active Access

Active Access Modules

Optical sub-assemblies for access networks, from 10G/25G TOSA/ROSA/BOSA to hermetically sealed platforms.

25G CWDM DFB TOSA

TOSA

The transmit engine of an access module — laser, lens and LC receptacle aligned and sealed as one sub-assembly ready for board mounting.

10G / 25G LC TOSA · 1270–1610 nm · CWDM
View details →
APD TIA ROSA

ROSA

The receive engine of an access module — PIN for standard spans, APD when the link budget runs short.

10G / 25G LC ROSA · PIN-TIA / APD-TIA
View details →
25G BOSA

BOSA

Transmit and receive on one fiber, halving the fiber count in PON and access drops — supplied in matched wavelength pairs.

10G / 25G BiDi LC BOSA · T1270/R1330 · T1330/R1270
View details →
Hermetic receptacle adapter

Hermetic & Receptacle

Keeps moisture off the optical path through a 20-year outdoor life — sealed assemblies, feedthroughs and butterfly laser platforms.

Metal adapters / connectors · hermetic sealed assembly · butterfly laser · feedthrough
View details →

Datasheets & Selection Guides

Every model has a PDF datasheet with complete specifications — also available in the Download Center. Custom wavelength, power and package options are available on request.

Request datasheets →

Tell us your spec.
We'll take it from there.

Tell us the wavelength, power handling and package size you need. With nearly two decades of optical design experience, our team can support you from evaluation through mass production.
